IEC 62368-1 Clause 5.4.4 Metal Mandrel Test Apparatus

Name: IEC 623681 Clause 544 Metal Mandrel Test Apparatus
Brand: Sinuo
Price: 1 USD

China IEC 62368-1 Clause 5.4.4 Metal Mandrel Test Apparatus wholesale

Brand Name : Sinuo

Model Number : SN2204

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 100 PCS Per Month

Delivery Time : 10 Days

Packaging Details : Standard Exporting Boxed

Applied Standard : IEC 62368-1

Clause : 5.4.4

Mandrel Material : Corrosion-resistance metal

Bracket Material : Aluminum profile

Rotating angle of the mandrel : 230 o

Test Force : 150N±10N

Contact Now

IEC 62368-1 Clause 5.4.4 230° Rotating Angle Corrosion-resistance Metal Mandrel Test Apparatus

Product Information:

This test apparatus conforms to IEC 62368-1:2018 clause 5.4.4, IEC60950-1:2013 clause 2.10.5.8, Annex AA, figure 14~16, IEC60558-1 Fig6, etc. It is used for tensile and electrical strength verification for non-separable thin layer materials.

This test apparatus has the mechanical limits in the position of 0^o and 230^o to make sure the accuracy of the testing angle.

Technical Parameters:

Applied Standard	IEC 62368-1
Clause	5.4.4
Mandrel Material	Made of corrosion-resistance metal
Bracket Material	Aluminum profile
Weights	1N2,50N2 (with through hole), 50N*1 (including the weight of hanging hook and clamping device for specimen)
Force of the two terminals of material foil	1N (two sets of 1N weights, also the clamping device for metal foil)
Rotating angle of the mandrel	230^o
Height of the mandrel to the bottom of the device	500mm

Product Tags:

Clause 5.4.4 Metal Mandrel Test Apparatus

IEC 62368-1 Mandrel Test Apparatus

140N Metal Mandrel Test Apparatus

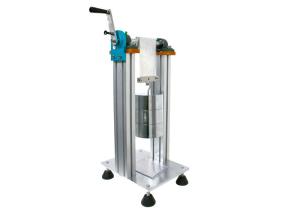

IEC 62368-1 Clause 5.4.4 Metal Mandrel Test Apparatus Images
