IEC 61009-1 Residual Current Protector Device Action Characteristic Tester
System overview:
The test equipment conforms to the standard requirements of IEC 61009-1:2012, IEC 60898-1:2015, IEC 61008-1:2010, etc.
It is used for automatic verification of the operating characteristics of small leakage circuit breakers, and verifies the safety performance of circuit breakers. The instrument takes ARM-7 high-speed processor as the core, equipped with high-speed true effective value A/D converter, DSS sinusoidal signal generator and power amplifier with mains tracking, the instrument automatically outputs current, and can perform action current, action time etc. test project.
Features:
➢ 24-bit high-speed and high-precision true RMS AD conversion, accurate sampling of operating current and voltage
➢ High-speed processor to accurately sample the action time
➢ Support the standard Modbus-RTU communication protocol
➢ Support quick selection of operating current for conventional products and separate setting of operating current for unconventional products
➢ 32-bit embedded processor, high-speed processing a large amount of communication data
➢ RS232/485 full-rate asynchronous serial communication interface, the maximum baud rate can reach 115200bps
➢ Isolation protection for input and output signals, safe work
➢ Software and hardware watchdog WDT design to ensure system stability
➢ The configuration parameters are stored in the flash memory, which will not be lost when the power is off, and will be stored permanently
➢ Anti-jamming design of software and hardware, can adapt to the occasions with harsh electromagnetic environment
Technical parameters:
| Model | SN2502 |
| Detection platform | The device is equipped with a set of three-phase leakage protection circuit breaker test interface. The leakage protection circuit breaker adopts manual wiring, and the detection station can be tested independently. |
| Working Power Consumption | Maximum 500W |
| Current Voltage Accuracy | Class 1; current resolution 0.1mA; voltage resolution 0.1V |
| Current output range | AC:5~2000mA |
| Output Voltage | 0~250V |
| Timing Accuracy | 5mS, resolution 1mS |
| Type A phase selection | 0 degrees (2000mA), 90 degrees (2000mA), 135 degrees (30mA) |
| Indicator | The power switch of the device uses a self-locking switch with an indicator light, and the light on the switch lights up when the switch is turned on. There is a running indicator light on the equipment panel, and the indicator light is on when the equipment is running |
| Dimension | 430mm×370mm×280mm |
| Weight | About 30 KG |

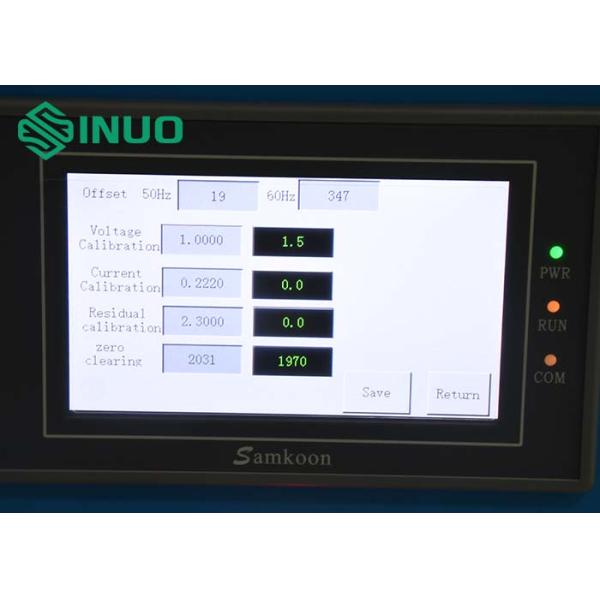

Details Display:
